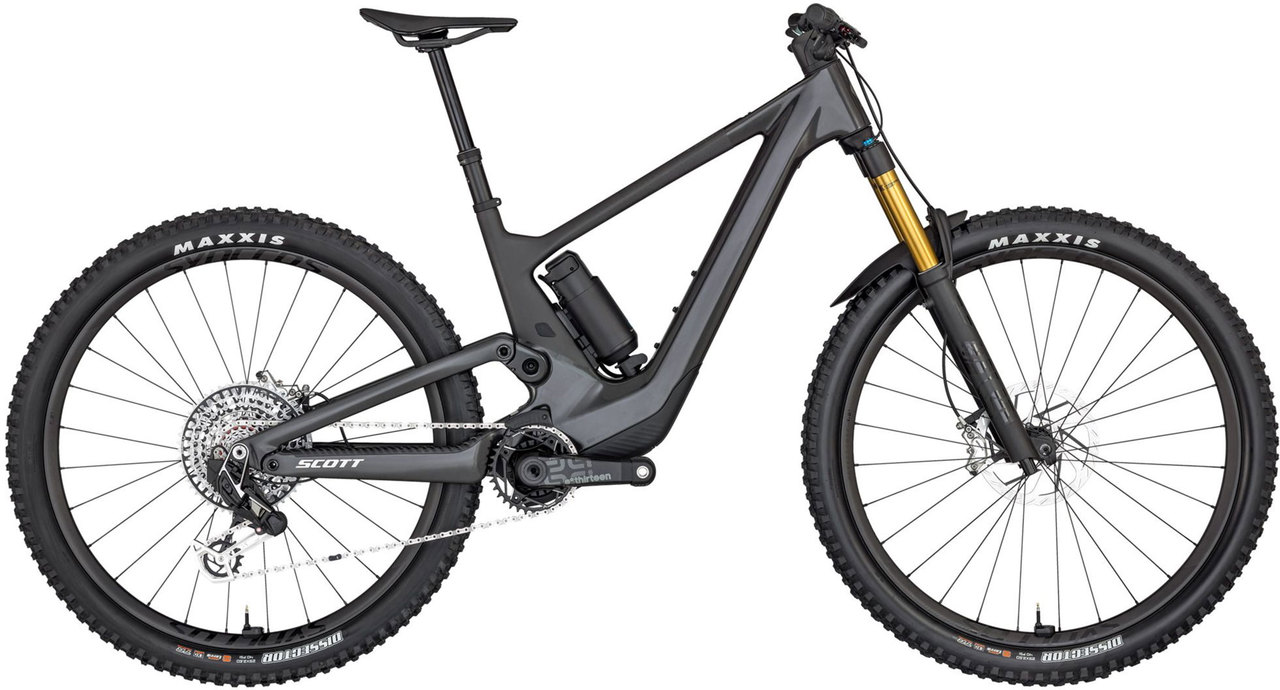

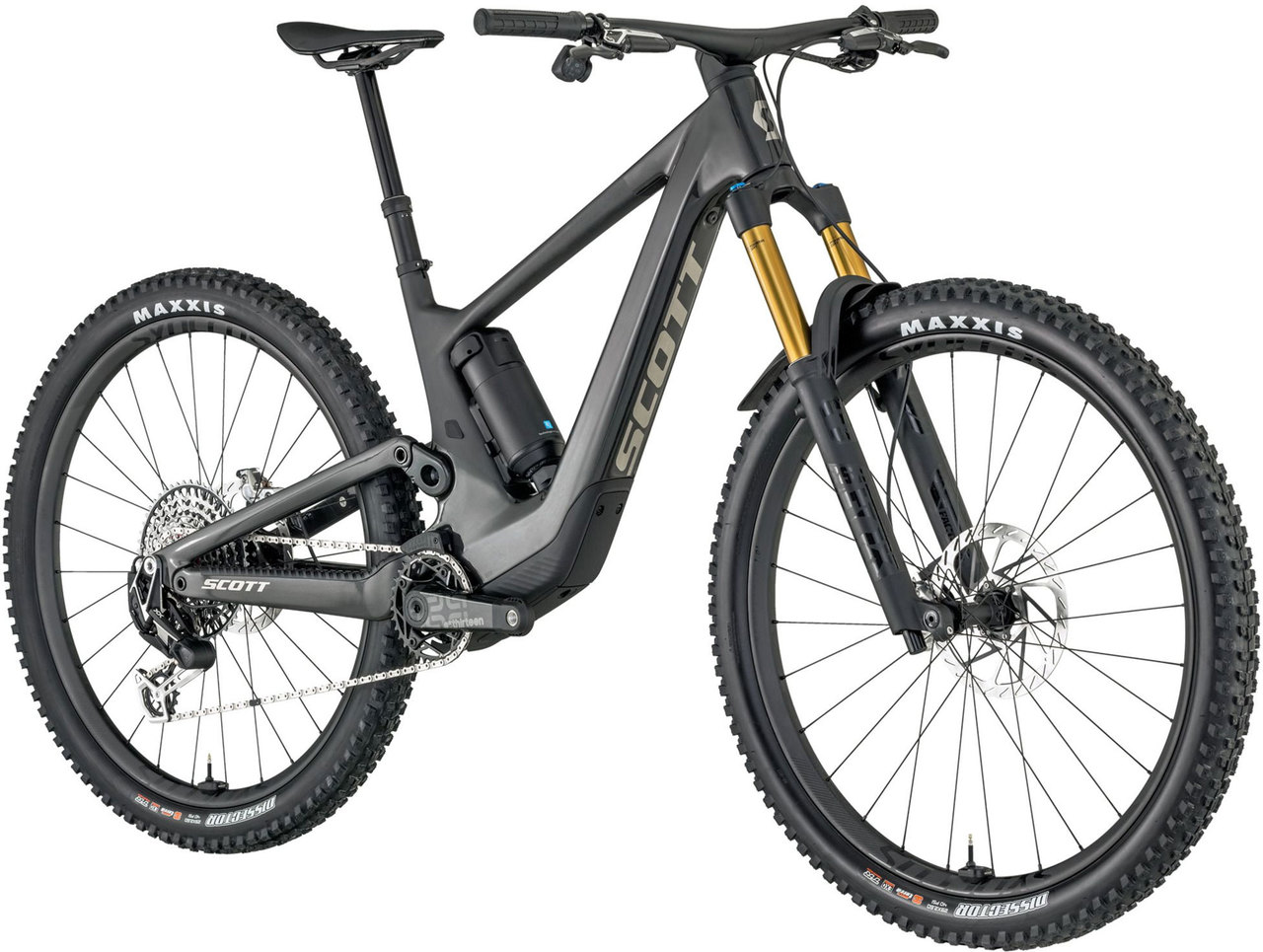

Электровелосипед FS Scott Voltage eRIDE 900 SL

Imagine the ultimate trail bike getting a secret weapon. That's exactly what SCOTT has created with the brand new Voltage eRIDE. Developed for true MTB enthusiasts, it combines agility, low weight and impressive performance — powered by a compact, virtually silent motor that masters every trail with ease. The full carbon frame forms the basis for an uncompromising setup: a Fox Racing Float Factory Fit4 suspension fork with 160 mm travel, a Fox Racing Nude 6T Factory shock, the precise SRAM XX Eagle AXS Transmission 1x12 drivetrain, powerful SRAM Code Ultimate 4-piston disc brakes and a lightweight Syncros Revelstoke carbon wheelset. The result: an E-MTB that redefines speed, control and riding fun on every trail.

• Voltage eRIDE HMF full carbon frame
• Fox Racing 36 Float Factory Fit4 suspension fork with 160 mm travel
• Fox Racing NUDE 6T EVOL, TwinLoc, rear shock with 155 mm travel
• SRAM XX AXS Transmission electronic 1x12-speed drivetrain
• Hydraulic SRAM Code 4-piston disc brakes with 200 mm HS2 brake rotors
• TQ HPR50 motor with 50 Nm torque
• TQ 360 Wh battery incl. 160 Wh range extender on the bottle cage mount
• Maxxis Dissector 29x2.6' tubeless ready folding tires
• Syncros Revelstoke 1.0S carbon wheelset
• Syncros Hixon iC carbon handlebar/stem unit

Integrated suspension technologyThe Voltage features patented integrated suspension technology. This means that the bike not only looks fantastic, but also has significantly improved suspension performance

Easy access to the shockWith the Voltage, accessing the patented integrated shocks is easier than ever. Simply press the button, remove the cover… done. From here, adjusting the rebound, air pressure, etc. is just a push of a button away. When you're done, simply replace the cover until you hear a click and you're ready to go.

External SAG displaySetting sag and checking travel has never been easier than with the Voltage. An external display on the link makes it easier for the rider to set the sag and determine how much travel is being ridden.

Float X Nude suspensionThe Voltage Tuned model features NUDE suspension technology with FOX's Float-X NUDE shock, paired with a fork that favors better adjustability. When you're riding up to have fun on the way down, you want a shock that gives you full power on the way down, but also a shock that won't slow you down when you need to go back up. This is where the Float-X NUDE comes in.

TQ HPR50 motor TQ is a German company founded in 1994 that specializes in electrical components for a range of industries. With the HPR50, Scott is rewriting the rules. It offers an unprecedented weight/power ratio of 1.8 kg at 50 Nm. With a diameter of 8 cm, TQ has redesigned it with the use of harmonic gearing. This allows a reduction in size while increasing the accuracy of the system. The result is a lighter bike, better integration and less kickback to create a more natural pedaling feel. This technology also reduces operating noise for a truly comfortable and quiet riding experience. After all, you're in the great outdoors to enjoy it.

TQ HPR50 batteryThe Voltage has an internal 360 Wh battery that can be supplemented by an external 160 Wh range extender. Thanks to TQ's electronics expertise, the HPR50 battery in combination with the range extender guarantees continuous maximum power until it is empty. TQ uses special battery cells to ensure that both the battery and the range extender continue to run at full power, even when it reaches low capacity. The system can be charged with the range extender, the intelligent charger, prioritizing the charge level of the main battery first so you never lose power while driving.Free spaceWith the TQ motor, Scott can maintain a standard Q-factor with a 55 mm chainline. This opens up some interesting possibilities. Firstly, Scott can guarantee a wider tire clearance that doesn't sacrifice stiffness, which is essential for power transfer. Secondly, you have exactly the same riding position and pedal width as on a normal bike.Dual water bottleUnlike most full-suspension e-bikes, with the Voltage you don't have to choose between a range extender or a water bottle — i.e. between longer rides and sufficient hydration. Thanks to the integrated shock absorber, there is space for both an external battery and water. An optional sliding mounting system also makes it easy to switch between the seat tube water bottle and the range extender, so that both can be easily transported on longer tours.TQ HPR50 range extenderThe Voltage has an internal 360 Wh battery that can be supplemented by an external 160 Wh range extender. The range extender easily attaches to the front water bottle cage with SCOTT's exclusive Quick Release mounting system and features a sleek design and low weight, which means minimal impact on the bike's handling.TQ HPR displayThe TQ system focuses on a minimalist display in the top tube and a discreet shift lever on the handlebars to create a clear cockpit. Thanks to an integrated power meter, the LED display provides all important information at a glance, such as the battery level in %, the remaining KM range and even wattage figures. Want more? Connect your smartphone and use the TQ E-Bike app, which is available from the Apple or Google Play Store. With an automatic Bluetooth connection, you can track your ride and customize your modes. Want to use it with a bike computer? No problem. Thanks to integrated ANT+, the system can be easily connected to a bike computer such as Garmin, Hammerhead or Wahoo.TQ HPR50 APPThe TQ app offers many advantages and is easy to use. With the TQ e-bike app, you can easily connect, customize and control your TQ-powered e-bike. The bike is equipped with a pre-set SCOTT motor tuning. With the app, you can further optimize your drive unit to either extend battery life or maximize performance. You can change the response of the pedals — either for a faster motor response or to slow it down for a more natural ride feel. You can also customize the display, change the order and number of available displays, switch control tones on and off, etc.Cable managementIt's no secret that there's a lot going on in a modern E-MTB, with a cable for the dropper seatpost, drive unit and battery cables, as well as rear suspension discreetly tucked away in the frame. Scott has developed a routing device for the dropper post cable and a shock sleeve to ensure that these components are well placed, easy to handle and kept safely away from moving parts. These clever solutions allow clean and unobstructed access to the rear shock settings when working on the bike.
